Thresholding Group Analyses¶
Written by Luke Chang
Now that we have learned how to estimate a single-subject model, create contrasts, and run a group-level analysis, the next important topic to cover is how we can threshold these group maps. This is not as straightforward as it might seem as we need to be able to correct for multiple comparisons.
In this tutorial, we will cover how we go from modeling brain responses in each voxel for a single participant to making inferences about the group. We will cover the following topics:
- Issues with correcting for multiple comparisons
- Family Wise Error Rate
- Bonferroni Correction
- False Discovery Rate
Let's get started by watching an overview of multiple comparisons by Martin Lindquist.
||(H_0||) is true, but we mistakenly reject it (i.e., False Positive)- This is controlled by significance level
||(\alpha||) .
||(H_0||) is false, but we fail to reject it (False Negative)
Simulations¶
Let's explore the concept of false positives to get an intuition about what the overall goals and issues are in controlling for multiple tests.
Let's load the modules we need for this tutorial. We will be using the SimulateGrid class which contains everything we need to run all of the simulations.
# '%matplotlib inline' command supported automatically in marimo
import os
import glob
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
import seaborn as sns
import plotly.graph_objects as go
from nltools.data import Brain_Data
from nltools.simulator import SimulateGrid
from dartbrains_tools.data import get_file, get_subjects
Okay, let's get started and generate 100 x 100 voxels from \(\mathcal{N}(0,1)\) distribution for 20 independent participants.
simulation = SimulateGrid(grid_width=100, n_subjects=20)
_f, _a = plt.subplots(nrows=5, ncols=4, figsize=(15, 15), sharex=True, sharey=True)
counter = 0
for col in range(4):
for row in range(5):
sns.heatmap(simulation.data[:, :, counter], ax=_a[row, col], cmap='RdBu_r', vmin=-4, vmax=4)
_a[row, col].set_title(f'Subject {counter + 1}', fontsize=16)
counter = counter + 1
plt.tight_layout()
plt.gcf()

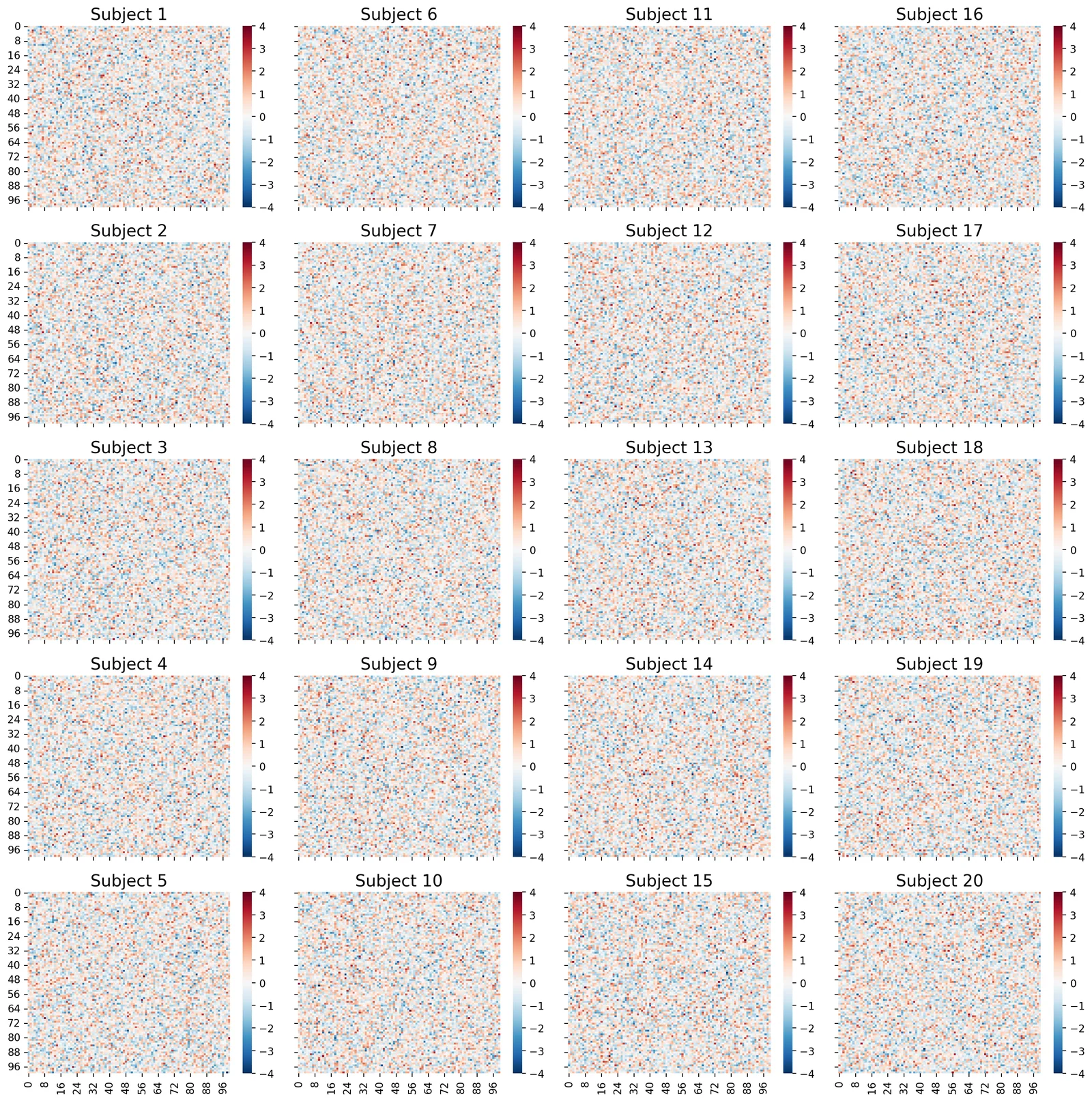

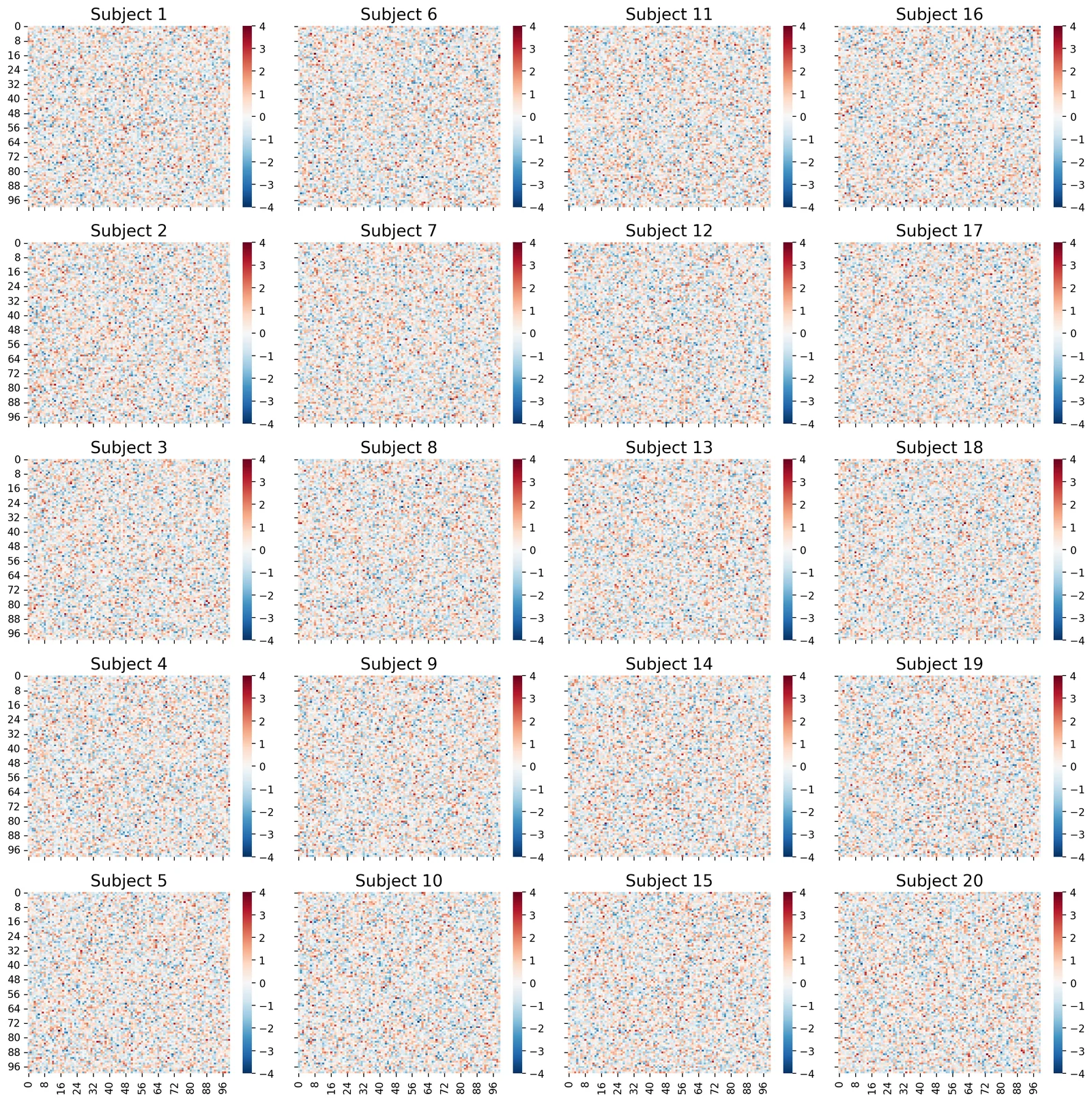

Each subject's simulated data is on a 100 x 100 grid. Think of this as a slice from their brain, where each pixel corresponds to the same spatial location across all participants. We have generated random noise separately for each subject. We have not added any true signal in this simulation yet.
This figure is simply to highlight that we are working with 20 independent subjects. In the rest of the plots, we will be working with a single grid that aggregates the results across participants.
Now we are going to start running some simulations to get a sense of the number of false positives we might expect to observe with this data. We will now run an independent one-sample t-test on every pixel in the grid across all 20 participants.
simulation.fit()

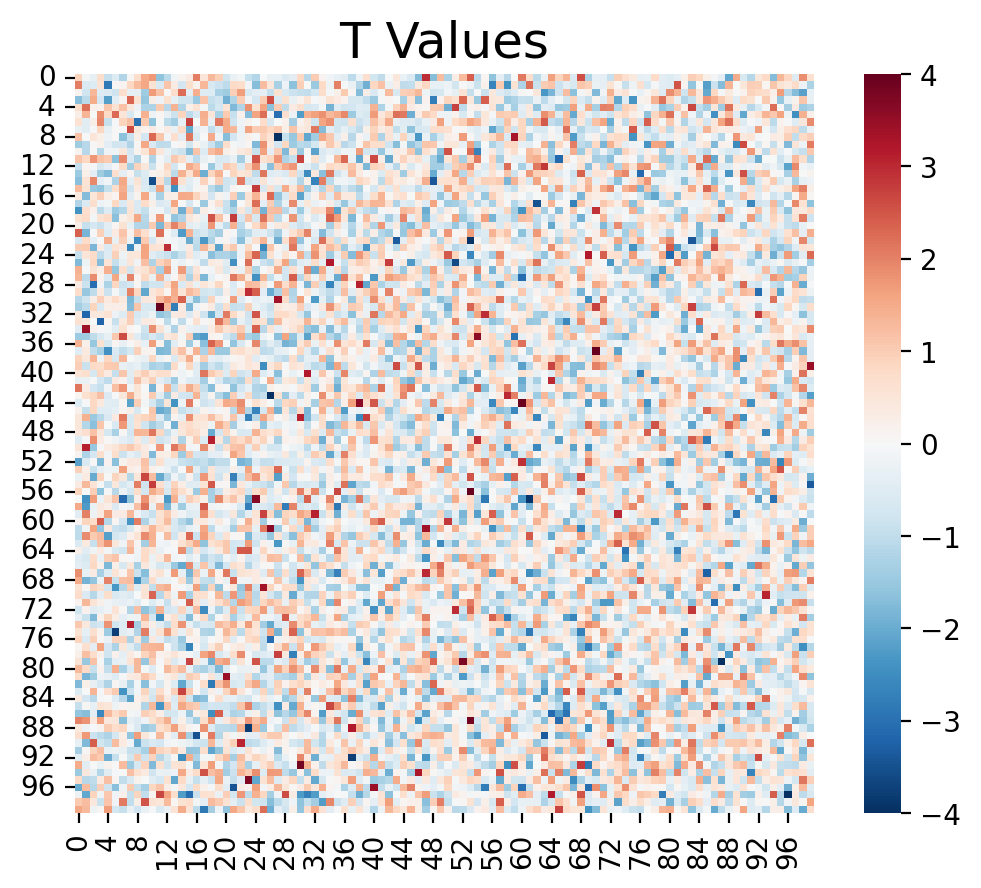

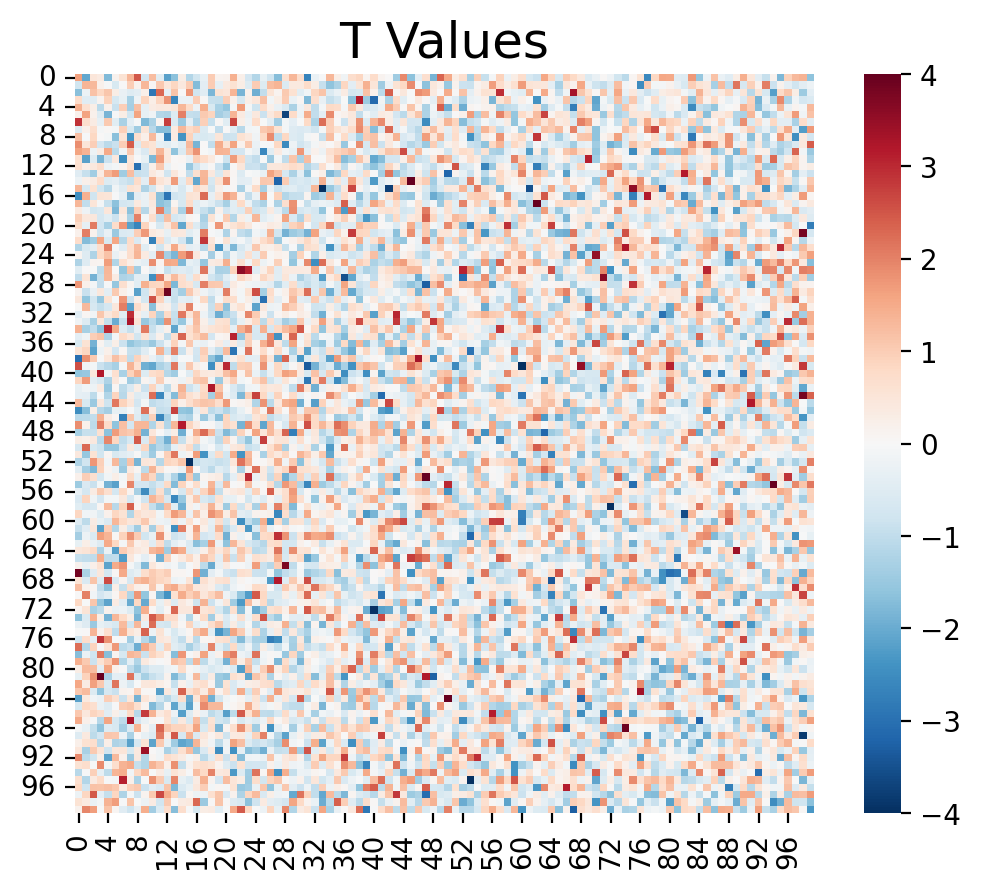

sns.heatmap(simulation.t_values, square=True, cmap='RdBu_r', vmin=-4, vmax=4)
plt.title("T Values", fontsize=18)
Even though there was no signal in this simulation, you can see that there are a number of pixels in the grid that exceed a t-value above 2 and below -2, which is the approximate cutoff for p < 0.05. These are all false positives.
Now let's apply a threshold. We can specify thresholds at a specific t-value using the threshold_type='t'. Alternatively, we can specify a specific p-value using the threshold_type='p'. To calculate the number of false positives, we can simply count the number of tests that exceed this threshold.
If we run this simulation again 100 times, we can estimate the false positive rate, which is the average number of false positives over all 100 simulations.
Let's see what this looks like for a threshold of p < 0.05.
_threshold = 0.05
simulation_1 = SimulateGrid(grid_width=100, n_subjects=20)
simulation_1.plot_grid_simulation(threshold=_threshold, threshold_type='p', n_simulations=100)
plt.gcf()
The left panel is the average over all of the participants. The middle panel show voxels that exceed the statistical threshold. The right panel is the overall false-positive rate across the 100 simulations.
In this simulation, a threshold of p < 0.05 results in observing at least one voxels that is a false positive across every one of our 100 simulations.

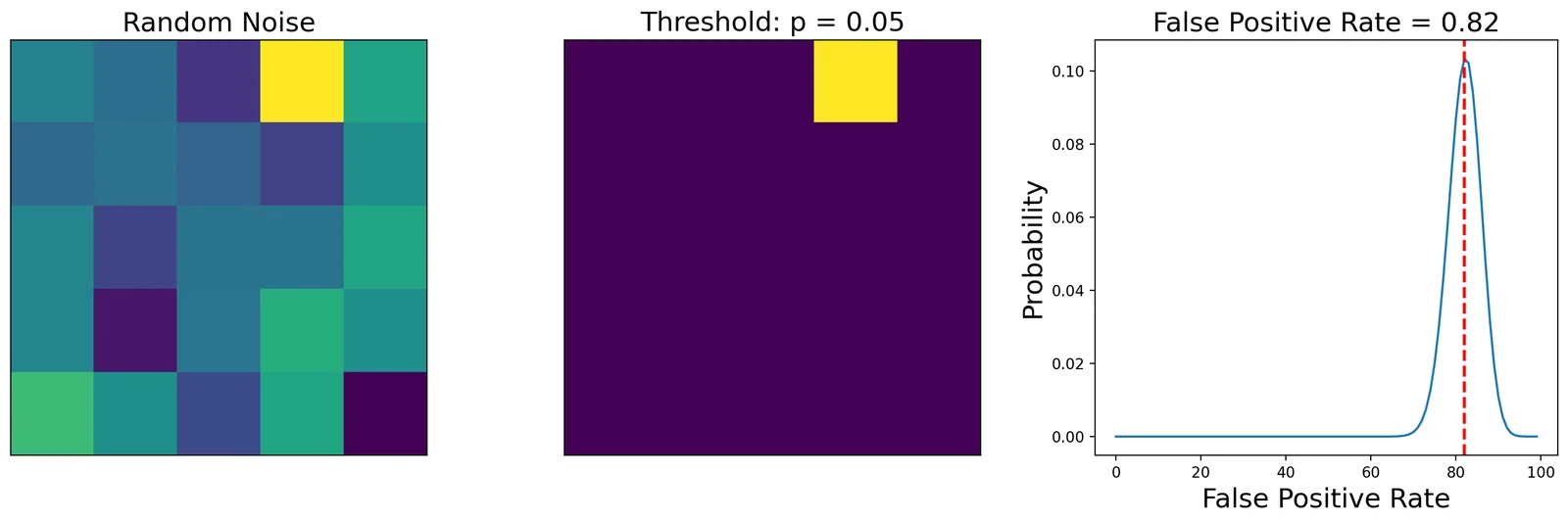

What if we looked at a fewer number of voxels? How would this change our false positive rate?
_threshold = 0.05
simulation_2 = SimulateGrid(grid_width=5, n_subjects=20)
simulation_2.plot_grid_simulation(threshold=_threshold, threshold_type='p', n_simulations=100)
plt.gcf()

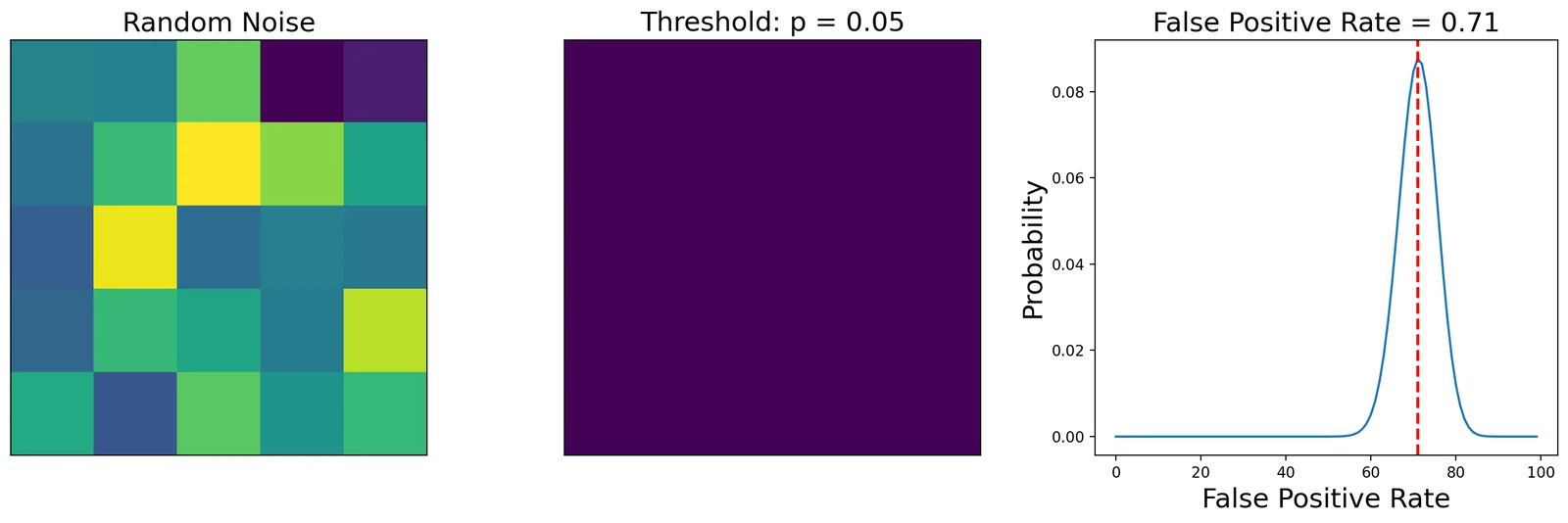

This simulation shows that examining fewer numbers of voxels will yield considerably less false positives. One common approach to controlling for multiple tests involves only looking for voxels within a specific region of interest (e.g., small volume correction), or looking at average activation within a larger region (e.g., ROI based analyses).
What about if we increase the threshold on our original 100 x 100 grid?
_threshold = 0.0001
simulation_3 = SimulateGrid(grid_width=100, n_subjects=20)
simulation_3.plot_grid_simulation(threshold=_threshold, threshold_type='p', n_simulations=100)
plt.gcf()

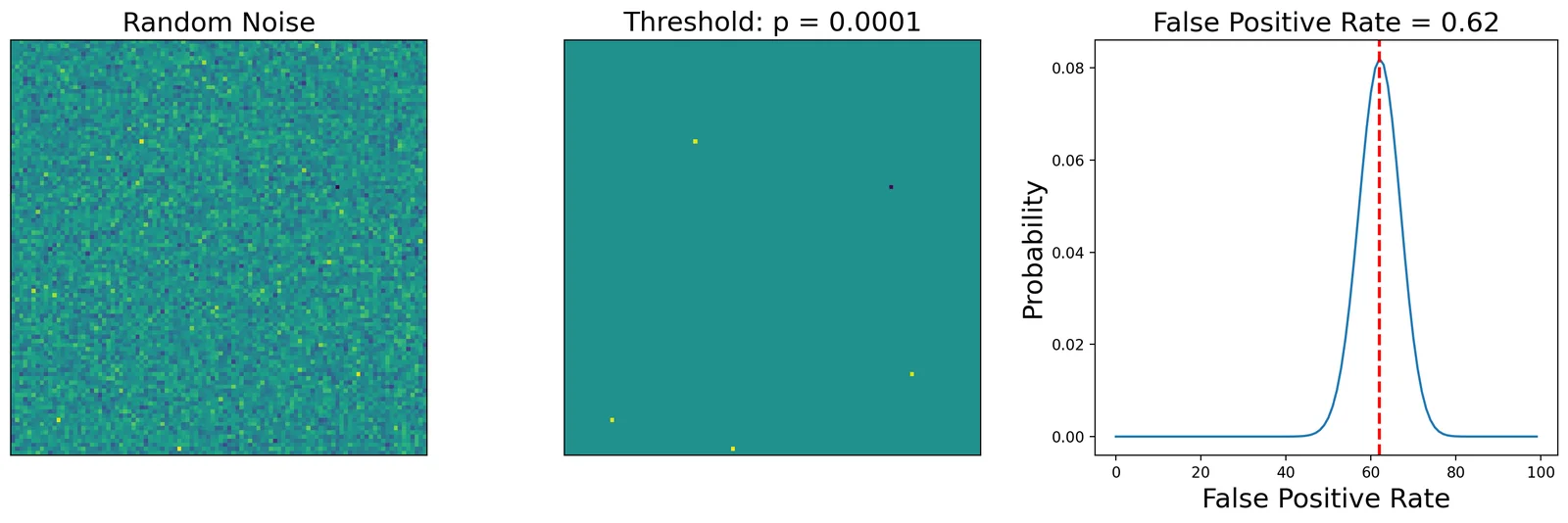

You can see that this dramatically decreases the number of false positives to the point that some of the simulations no longer contain any false positives.
What is the optimal threshold that will give us an \(\alpha=0.05\)?
To calculate this, we will run 100 simulations at different threshold levels to find the threshold that leads to a false positive rate that is lower than our alpha value.
We could search over t-values, or p-values. Let's explore t-values first.
# 20 thresholds × 100 simulations × a 100×100 voxel grid is ~20 M
# t-tests via joblib — many minutes cold. mo.persistent_cache writes
# the FPR result to __marimo__/cache/ so the first build pays the
# cost once and every subsequent (re)build is instant. The cache
# invalidates automatically if any input variable in this cell
# changes.
alpha = 0.05
n_simulations = 100
x = np.arange(3, 7, 0.2)
with mo.persistent_cache("threshold_fpr_sweep"):
sim_all = []
for p in x:
sim = SimulateGrid(grid_width=100, n_subjects=20)
sim.run_multiple_simulations(threshold=p, threshold_type='t', n_simulations=n_simulations)
sim_all.append(sim.fpr)
_fig = go.Figure()
_fig.add_trace(go.Scatter(
x=x, y=sim_all, mode='lines+markers',
name='False Positive Rate', line=dict(width=2),
hovertemplate='t=%{x:.2f}<br>FPR=%{y:.3f}<extra></extra>',
))
_fig.add_hline(
y=alpha, line=dict(color='red', dash='dash', width=2),
annotation_text=f'α = {alpha}', annotation_position='top right',
)
_fig.update_layout(
xaxis_title='Threshold (t)',
yaxis_title='False Positive Rate',
title=f'Simulations = {n_simulations}',
height=400,
hovermode='x unified',
margin=dict(l=60, r=20, t=50, b=50),
)
_fig
As you can see, the false positive rate is close to our alpha starting at a threshold of about 6.2. This means that when we test a hypothesis over 10,000 independent voxels, we can be confident that we will only observe false positives in approximately 5 out of 100 experiments. This means that we are effectively controlling the family wise error rate (FWER).
Let's use that threshold for our simulation again.
simulation_4 = SimulateGrid(grid_width=100, n_subjects=20)
simulation_4.plot_grid_simulation(threshold=6.2, threshold_type='t', n_simulations=100)
plt.gcf()

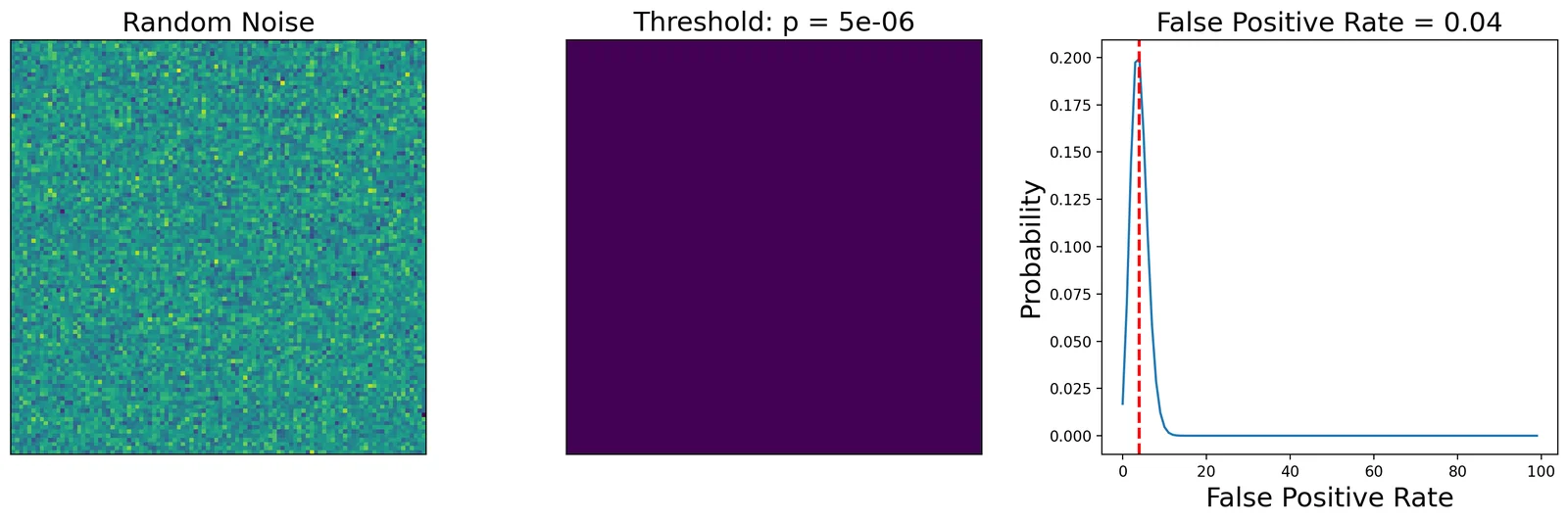

Notice, that we are now observing a false positive rate of approximately .05, though this number will slightly change each time you run the simulation.
Another way to find the threshold that controls FWER is to divide the alpha by the number of independent tests across voxels. This is called the bonferroni correction.
\({bonferroni} = \frac{\alpha}{M}\), where \(M\) is the number of voxels.
_grid_width = 100
_threshold = 0.05 / _grid_width ** 2
simulation_5 = SimulateGrid(grid_width=_grid_width, n_subjects=20)
simulation_5.plot_grid_simulation(threshold=_threshold, threshold_type='p', n_simulations=100)
plt.gcf()
This seems like a great way to ensure that we minimize our false positives.
Now what happens when start adding signal to our simulation?
We will represent signal in a smaller square in the middle of the simulation. The width of the square can be changed using the signal_width parameter. The amplitude of this signal is controlled by the signal_amplitude parameter.
Let's see how well the bonferroni threshold performs when we add 100 voxels of signal.
_grid_width = 100
_threshold = 0.05 / _grid_width ** 2
signal_width = 10
_signal_amplitude = 1
simulation_6 = SimulateGrid(signal_amplitude=_signal_amplitude, signal_width=10, grid_width=_grid_width, n_subjects=20)
simulation_6.plot_grid_simulation(threshold=_threshold, threshold_type='p', n_simulations=100)
plt.gcf()

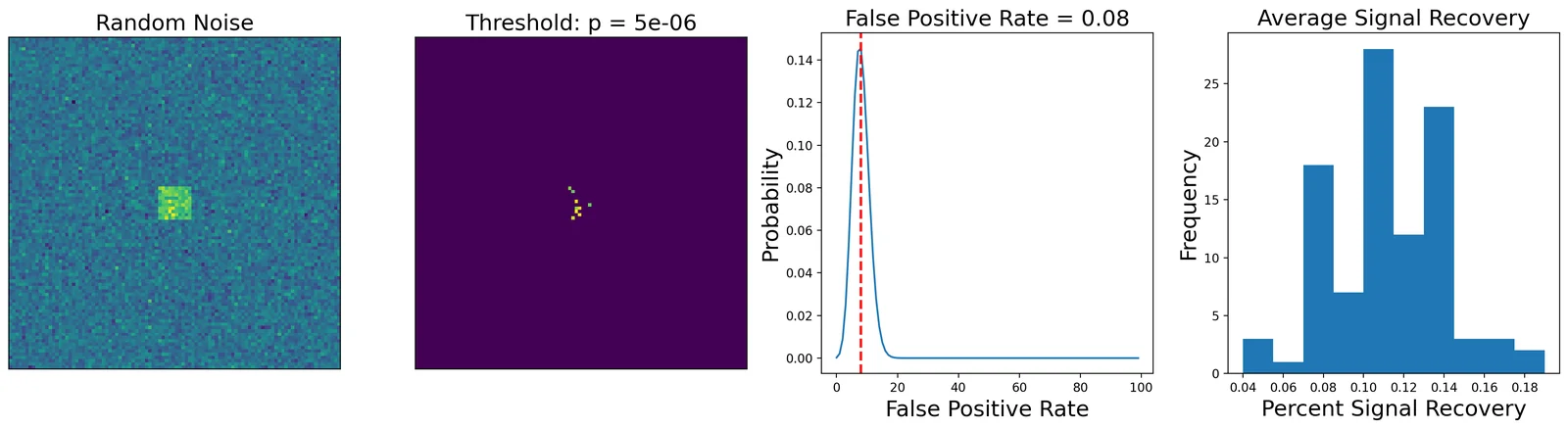

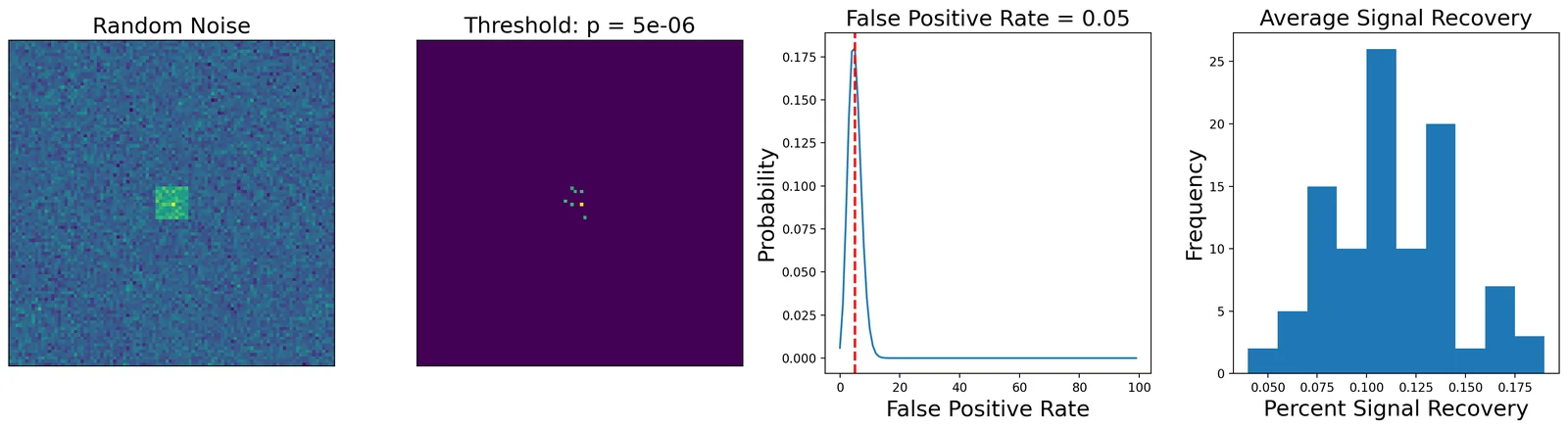

Here we show how many voxels were identified using the bonferroni correction.
In the left panel is the average data across all 20 participants. The second panel, shows the voxels that exceed the statistical threshold. The third panel shows the false positive rate, and the 4th panel furthest on the right shows the average signal recovery (how many voxels survived within the true signal square across all 100 simulations.
We can see that we have an effective false positive rate approximately equal to our alpha threshold. However, our threshold is so high, that we can barely detect any true signal with this amplitude. In fact, we are only recovering about 12% of the voxels that should have signal.
This simulation highlights the main issue with using bonferroni correction in practice. The threshold is so conservative that the magnitude of an effect needs to be unreasonably large to survive correction over hundreds of thousands of voxels.
Family Wise Error Rate¶
At this point you may be wondering if it even makes sense to assume that each test is independent. It seems reasonable to expect some degree of spatial correlation in our data. Our simulation is a good example of this as we have a square that contains signal across contiguous voxels. In practice, most of our functional neuroanatomy that we are investigating is larger than a single voxel and our spatial smoothing preprocessing step increase the spatial correlation.
It can be shown that the Bonferroni correction is overally conservative in the presence of spatial dependence and results in a decreased power to detect voxels that are truly active.
Let's watch a video by Martin Lindquist to learn more about different ways to control for the Family Wise Error Rate.
Cluster Extent

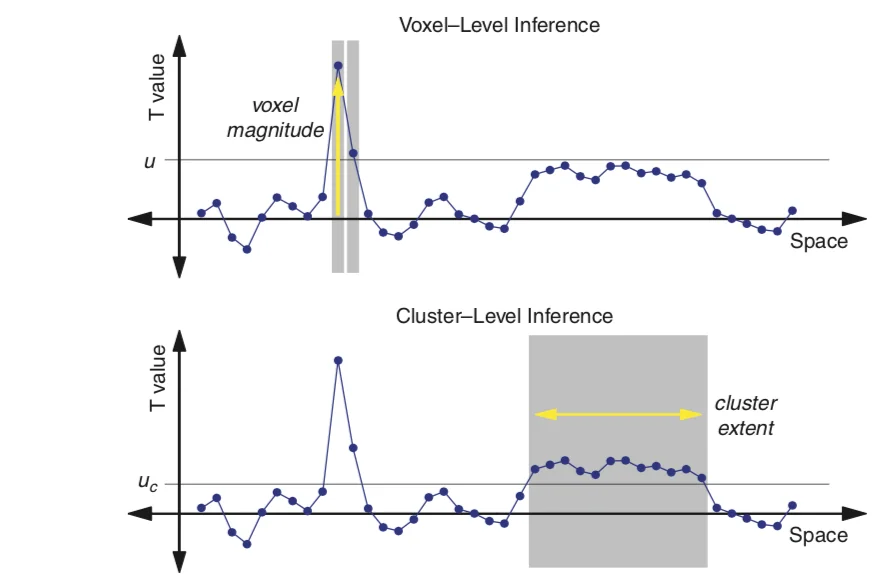

Another approach to controlling the FWER is called cluster correction, or cluster extent. In this approach, the goal is to identify a threshold such that the maximum statistic exceeds it at a specified alpha. The distribution of the maximum statistic can be approximated using Gaussian Random Field Theory (RFT), which attempts to account for the spatial dependence of the data.
This requires specifying an initial threshold to determine the Euler Characteristic or the number of blobs minus the number of holes in the thresholded image. The number of voxels in the blob and the overall smoothness can be used to calculate something called resels or resolution elements and can be effectively thought of as the spatial units that need to be controlled for using FWER. We won't be going into too much detail with this approach as the mathematical details are somewhat complicated. In practice, if the image is smooth and the number of subjects is high enough (around 20), cluster correction seems to provide control closer to the true false positive rate than Bonferroni correction. Though we won't be spending time simulating this today, I encourage you to check out this Python simulation by Matthew Brett and this chapter for an introduction to random field theory.
Cluster extent thresholding has recently become somewhat controversial due to several high profile papers that have found that it appears to lead to an inflated false positive rate in practice (see Ekland et al., 2017). A recent paper by Woo et al. 2014 has shown that a liberal initial threshold (i.e. higher than p < 0.001) will inflate the number of false positives above the nominal level of 5%. There is no optimal way to select the initial threshold and often slight changes will give very different results. Furthermore, this approach does not appear to work equally well across all types of findings. For example, this approach can work well with some amounts of smoothing results that have a particular spatial extent, but not equally well for all types of signals. In other words, it seems potentially problematic to assume that spatial smoothness is constant over the brain and also that it is adequately represented using a Gaussian distribution. Finally, it is important to note that this approach only allows us to make inferences for the entire cluster. We can say that there is some voxel in the cluster that is significant, but we can't really pinpoint which voxels within the cluster may be driving the effect.
This is one of the more popular ways to control for multiple comparisons as it is particularly sensitive when there is a weak, but spatially contiguous signal. However, in practice, we don't recommend using this approach as it has a lot of assumptions that are rarely met and the spatial inference is fairly weak.

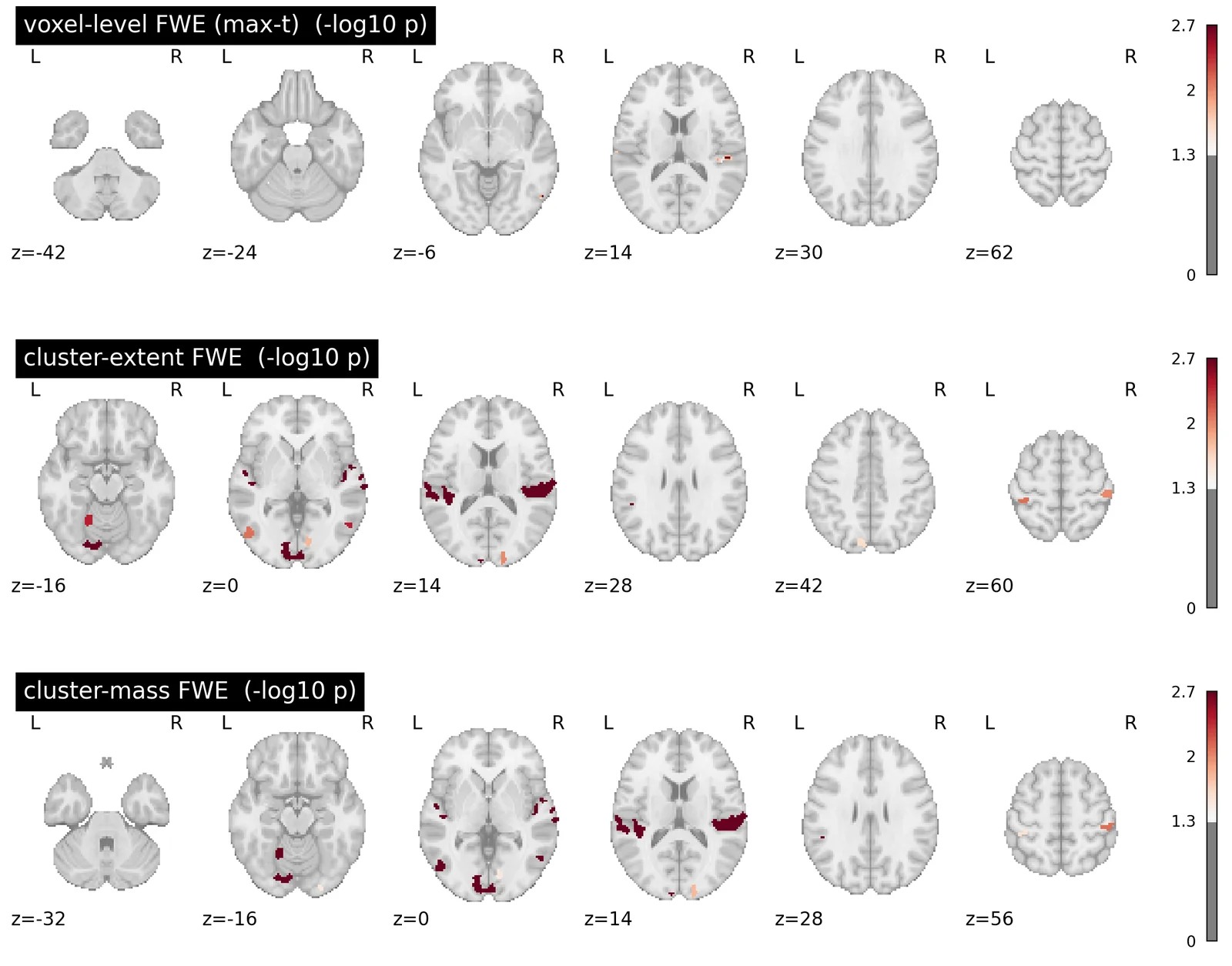

There are several other popular FWER approaches to correcting for multiple tests that try to address these issues.

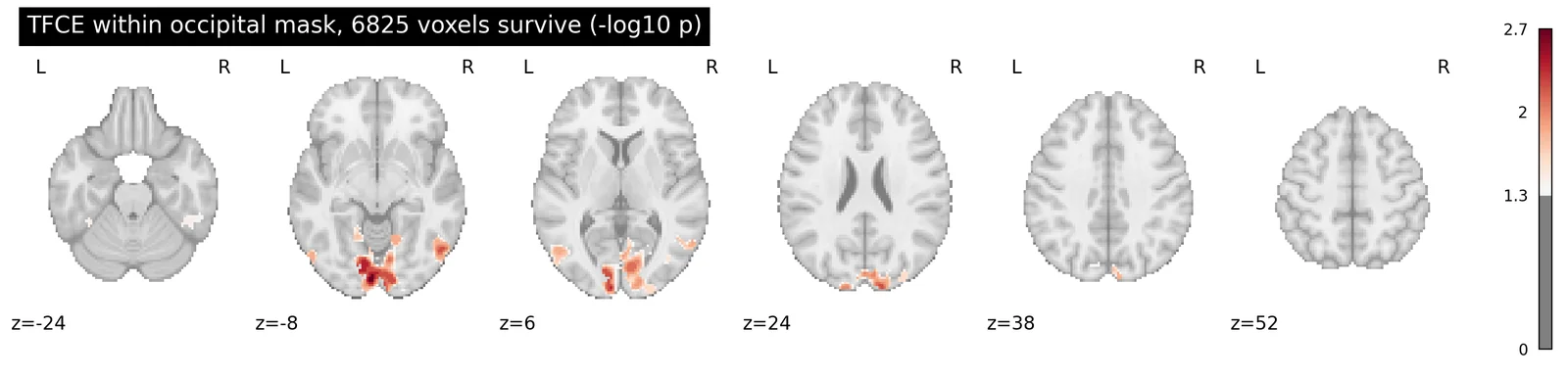

Threshold Free Cluster Extent
One interesting solution to the issue of finding an initial threshold seems to be addressed by the threshold free cluster enhancement method presented in Smith & Nichols, 2009. In this approach, the authors propose a way to combine cluster extent and voxel height into a single metric that does not require specifying a specific initial threshold. It essentially involves calculating the integral of the overall product of a signal intensity and spatial extent over multiple thresholds. It has been shown to perform particularly well when combined with non-parameteric resampling approaches such as randomise in FSL. This method is implemented in FSL and also in Matlab by Mark Thornton. For more details about this approach check out this blog post by Mark Thornton, this video by Jeanette Mumford, and the original technical report.Parametric simulations
One approach to estimating the inherent smoothness in the data, or it's spatial autocorrelation, is using parametric simulations. This was the approach originally adopted in AFNI's AlphaSim/3DClustSim. After it was demonstrated that real fMRI data was not adequately modeled by a standard Gaussian distribution, the AFNI group quickly updated their software and implemented a range of different algorithms in their 3DClustSim tool. See this paper for an overview of these changes.Nonparametric approaches

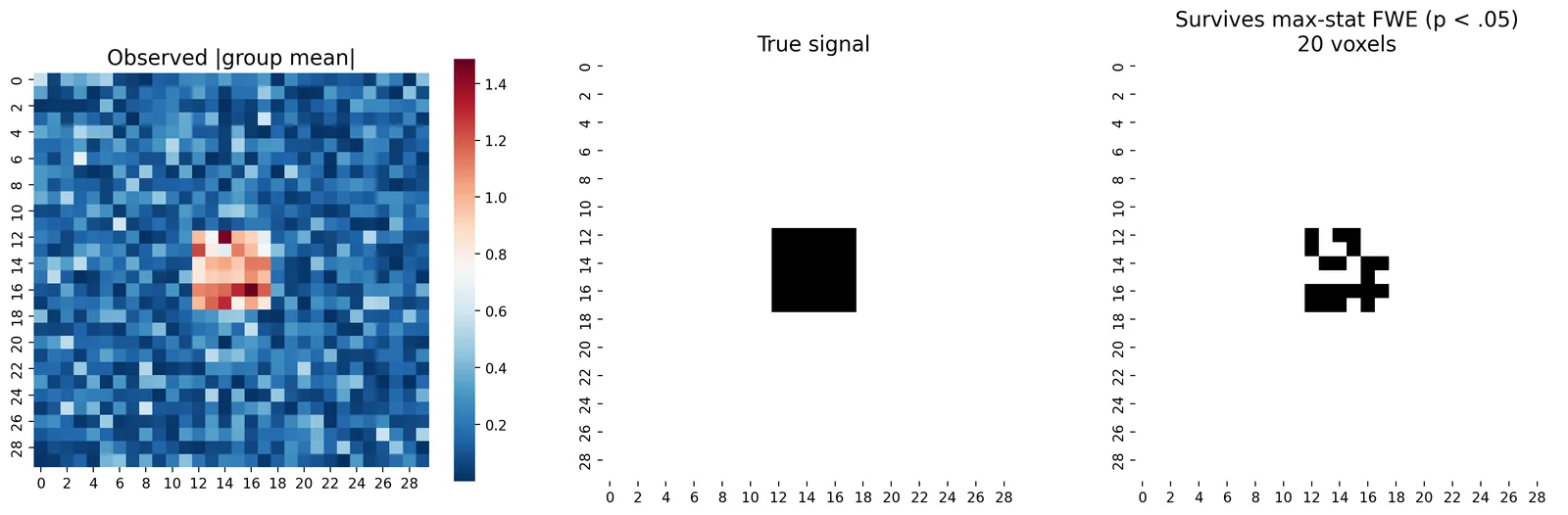

As an alternative to RFT, nonparametric methods use the data themselves to find the appropriate distribution. These methods can provide substantial improvements in power and validity, particularly with small sample sizes, so we recommend these in general over cluster extent. These tests can verify the validity of the less computationally expensive parametric approaches. However, it is important to note that this is much more computationally expensive as 5-10k permutations need to be run at every voxel. The FSL tool randomise is probably the current gold standard and there are versions that run on GPUs, such as BROCCOLI to speed up the computation time. Here we will run a simulation using a one-sample permutation test (i.e., sign test) on our data. We will make the grid much smaller to speed up the simulation and will decrease the number of simulations by an order of magnitude, but you will see that it is still very slow (5,000 permutations times 9 voxels times 10 simulations). This approach makes no distributional assumptions, but still requires correcting for multiple tests using either FWER or FDR approaches. Don't worry about running this cell if it is taking too long.# ~450,000 permutation iterations (10 sims × 5000 perms × 9 voxels) —
# this cell is slow (~30 min) on every cold rebuild.
_grid_width = 3
_threshold = 0.05
_signal_amplitude = 1
simulation_7 = SimulateGrid(signal_amplitude=_signal_amplitude, signal_width=2, grid_width=_grid_width, n_subjects=20)
simulation_7.t_values, simulation_7.p_values = simulation_7._run_permutation(simulation_7.data)
simulation_7.isfit = True
simulation_7.threshold_simulation(_threshold, 'p')
simulation_7.plot_grid_simulation(threshold=_threshold, threshold_type='p', n_simulations=10)
plt.gcf()
False Discovery Rate (FDR)¶
You may be wondering why we need to control for any false positive when testing across hundreds of thousands of voxels. Surely a few are okay as long as they don't overwhelm the true signal.
Let's learn about the False Discovery Rate (FDR) from another video by Martin Lindquist.
1. We select a desired limit $q$ on FDR, which is the proportion of false positives we are okay with observing (e.g., 5/100 tests or 0.05).
2. We rank all of the p-values over all the voxels from the smallest to largest.
3. We find the threshold $r$ such that $p \leq i/m * q$
4. We reject any $H_0$ that is lower than $r$.
In a brain map, this means that we expect approximately 95% of the voxels reported at q < .05 FDR-corrected to be true activations (note we use q instead of p). The FDR procedure adaptively identifies a threshold based on the overall signal across all voxels. Larger signals results in lower thresholds. Importantly, if all of the null hypotheses are true, then the FDR will be equivalent to the FWER. This means that any FWER procedure will also control the FDR. For these reasons, any procedure which controls the FDR is necessarily less stringent than a FWER controlling procedure, which leads to an overall increased power. Another nice feature of FDR, is that it operates on p-values instead of test statistics, which means it can be applied to most statistical tests.

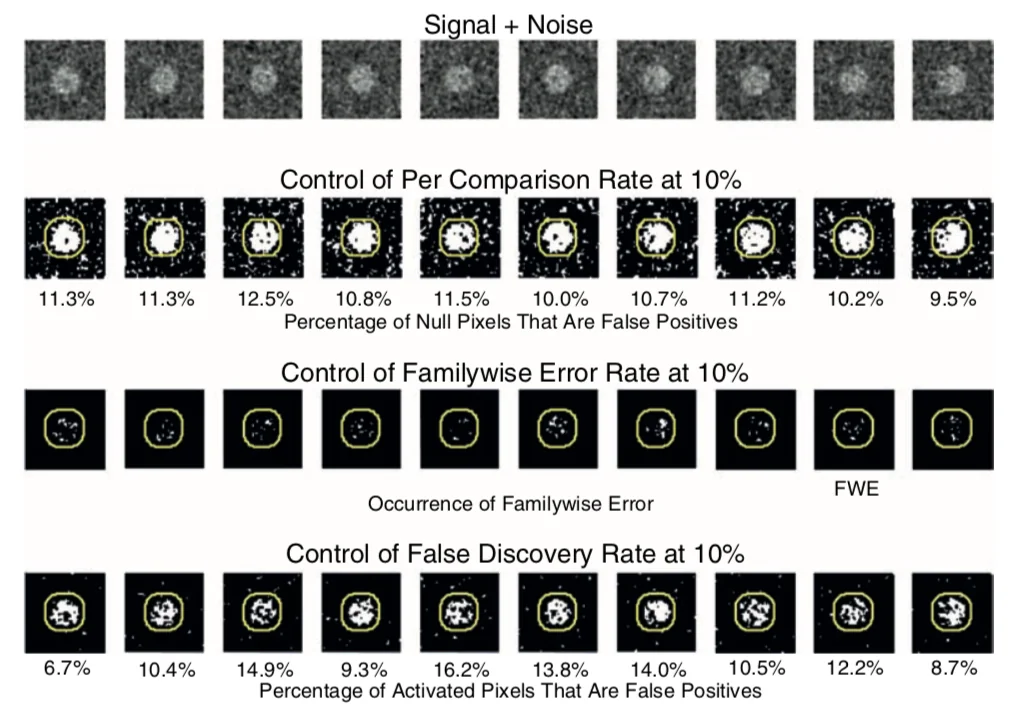

This figure is taken from Poldrack, Mumford, & Nichols (2011) and compares different procedures to control for multiple tests.
For a more indepth overview of FDR, see this tutorial by Matthew Brett.

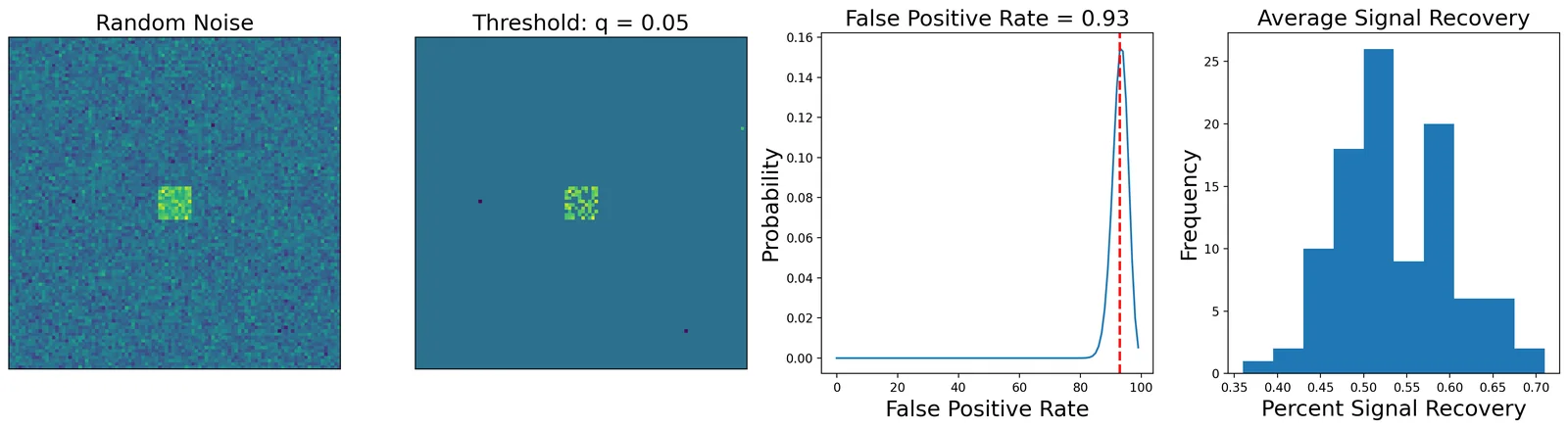

Let's now try to apply FDR to our own simulations. All we need to do is add a correction='fdr' flag to our simulation plot. We need to make sure that the threshold=0.05 to use the correct _grid_width = 100
_threshold = 0.05
_signal_amplitude = 1
simulation_8 = SimulateGrid(signal_amplitude=_signal_amplitude, signal_width=10, grid_width=_grid_width, n_subjects=20)
simulation_8.plot_grid_simulation(threshold=_threshold, threshold_type='q', n_simulations=100, correction='fdr')
print(f'FDR q < 0.05 corresponds to p-value of {simulation_8.corrected_threshold}')
plt.gcf()
FDR q < 0.05 corresponds to p-value of 0.0003011839498026549

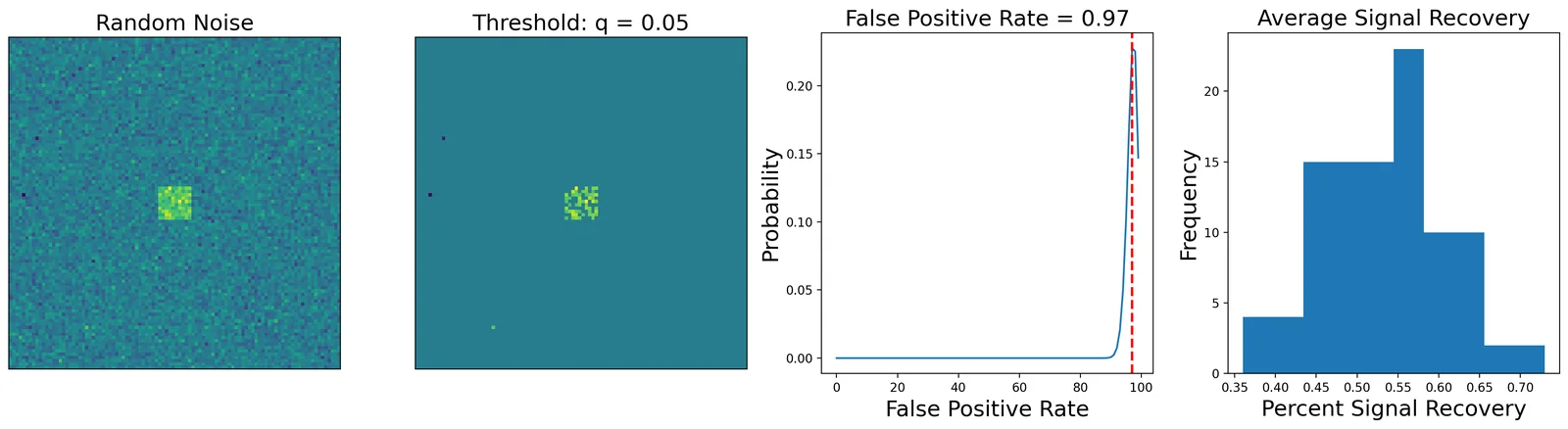

Okay, using FDR of q < 0.05 for our simulation identifies a p-value threshold of p < 0.00034. This is more liberal than the bonferroni threshold of p < 0.000005 and allows us to recover much more signal as a consequence. You can see that at this threshold there are more false positives, which leads to a much higher overall false positive rate. Remember, this metric is only used for calculating the family wise error rate and indicates the presence of any false positive across each of our 100 simulations.
To calculate the empirical false discovery rate, we need to calculate the percent of any activated voxels that were false positives.
_fig = go.Figure()
_fig.add_trace(go.Histogram(
x=simulation_8.multiple_fdr, name='FDR',
hovertemplate='FDR=%{x:.3f}<br>count=%{y}<extra></extra>',
))
_fig.update_layout(
xaxis_title='False Discovery Rate',
yaxis_title='Frequency',
title='False Discovery Rate of Simulations',
height=400,
margin=dict(l=60, r=20, t=50, b=50),
)
_fig
In our 100 simulations, the majority had a false discovery rate below our q < 0.05.
Thresholding Brain Maps¶
In the remainder of the tutorial, we will move from simulation to playing with real data.
Let's watch another video by Tor Wager on how multiple comparison approaches are used in practice, highlighting some of the pitfalls with some of the different approaches.
We will be exploring two simple and fast ways to threshold your group analyses.
First, we will simply threshold based on selecting an arbitrary statistical threshold. The values are completely arbitrary, but it is common to start with something like p < .001. We call this uncorrected because this is simply the threshold for any voxel as we are not controlling for multiple tests.
con1_name = 'horizontal_checkerboard'
con1_file_list = [get_file(sub, 'betas', con1_name) for sub in get_subjects()]
con1_dat = Brain_Data([Brain_Data(f) for f in con1_file_list])
_con1_stats = con1_dat.ttest(threshold_dict={'unc': 0.001})
_con1_stats['thr_t'].iplot()
Warning: You are sending unauthenticated requests to the HF Hub. Please set a HF_TOKEN to enable higher rate limits and faster downloads. /home/runner/work/dartbrains/dartbrains/.venv/lib/python3.13/site-packages/nltools/data/brain_data.py:253: UserWarning: [NiftiMasker.fit] Generation of a mask has been requested (imgs != None) while a mask was given at masker creation. Given mask will be used. self.data = self.nifti_masker.fit_transform(data) /home/runner/work/dartbrains/dartbrains/.venv/lib/python3.13/site-packages/nltools/data/brain_data.py:253: UserWarning: [NiftiMasker.fit] Generation of a mask has been requested (imgs != None) while a mask was given at masker creation. Given mask will be used. self.data = self.nifti_masker.fit_transform(data) /home/runner/work/dartbrains/dartbrains/.venv/lib/python3.13/site-packages/nltools/data/brain_data.py:253: UserWarning: [NiftiMasker.fit] Generation of a mask has been requested (imgs != None) while a mask was given at masker creation. Given mask will be used. self.data = self.nifti_masker.fit_transform(data) /home/runner/work/dartbrains/dartbrains/.venv/lib/python3.13/site-packages/nltools/data/brain_data.py:253: UserWarning: [NiftiMasker.fit] Generation of a mask has been requested (imgs != None) while a mask was given at masker creation. Given mask will be used. self.data = self.nifti_masker.fit_transform(data) /home/runner/work/dartbrains/dartbrains/.venv/lib/python3.13/site-packages/nltools/data/brain_data.py:253: UserWarning: [NiftiMasker.fit] Generation of a mask has been requested (imgs != None) while a mask was given at masker creation. Given mask will be used. self.data = self.nifti_masker.fit_transform(data) /home/runner/work/dartbrains/dartbrains/.venv/lib/python3.13/site-packages/nltools/data/brain_data.py:253: UserWarning: [NiftiMasker.fit] Generation of a mask has been requested (imgs != None) while a mask was given at masker creation. Given mask will be used. self.data = self.nifti_masker.fit_transform(data) /home/runner/work/dartbrains/dartbrains/.venv/lib/python3.13/site-packages/nltools/data/brain_data.py:253: UserWarning: [NiftiMasker.fit] Generation of a mask has been requested (imgs != None) while a mask was given at masker creation. Given mask will be used. self.data = self.nifti_masker.fit_transform(data) /home/runner/work/dartbrains/dartbrains/.venv/lib/python3.13/site-packages/nltools/data/brain_data.py:253: UserWarning: [NiftiMasker.fit] Generation of a mask has been requested (imgs != None) while a mask was given at masker creation. Given mask will be used. self.data = self.nifti_masker.fit_transform(data) /home/runner/work/dartbrains/dartbrains/.venv/lib/python3.13/site-packages/nltools/data/brain_data.py:253: UserWarning: [NiftiMasker.fit] Generation of a mask has been requested (imgs != None) while a mask was given at masker creation. Given mask will be used. self.data = self.nifti_masker.fit_transform(data) /home/runner/work/dartbrains/dartbrains/.venv/lib/python3.13/site-packages/nltools/data/brain_data.py:253: UserWarning: [NiftiMasker.fit] Generation of a mask has been requested (imgs != None) while a mask was given at masker creation. Given mask will be used. self.data = self.nifti_masker.fit_transform(data) /home/runner/work/dartbrains/dartbrains/.venv/lib/python3.13/site-packages/nltools/data/brain_data.py:253: UserWarning: [NiftiMasker.fit] Generation of a mask has been requested (imgs != None) while a mask was given at masker creation. Given mask will be used. self.data = self.nifti_masker.fit_transform(data) /home/runner/work/dartbrains/dartbrains/.venv/lib/python3.13/site-packages/nltools/data/brain_data.py:253: UserWarning: [NiftiMasker.fit] Generation of a mask has been requested (imgs != None) while a mask was given at masker creation. Given mask will be used. self.data = self.nifti_masker.fit_transform(data) /home/runner/work/dartbrains/dartbrains/.venv/lib/python3.13/site-packages/nltools/data/brain_data.py:253: UserWarning: [NiftiMasker.fit] Generation of a mask has been requested (imgs != None) while a mask was given at masker creation. Given mask will be used. self.data = self.nifti_masker.fit_transform(data) /home/runner/work/dartbrains/dartbrains/.venv/lib/python3.13/site-packages/nltools/data/brain_data.py:253: UserWarning: [NiftiMasker.fit] Generation of a mask has been requested (imgs != None) while a mask was given at masker creation. Given mask will be used. self.data = self.nifti_masker.fit_transform(data) /home/runner/work/dartbrains/dartbrains/.venv/lib/python3.13/site-packages/nltools/data/brain_data.py:253: UserWarning: [NiftiMasker.fit] Generation of a mask has been requested (imgs != None) while a mask was given at masker creation. Given mask will be used. self.data = self.nifti_masker.fit_transform(data) /home/runner/work/dartbrains/dartbrains/.venv/lib/python3.13/site-packages/nltools/data/brain_data.py:253: UserWarning: [NiftiMasker.fit] Generation of a mask has been requested (imgs != None) while a mask was given at masker creation. Given mask will be used. self.data = self.nifti_masker.fit_transform(data) /home/runner/work/dartbrains/dartbrains/.venv/lib/python3.13/site-packages/nltools/data/brain_data.py:253: UserWarning: [NiftiMasker.fit] Generation of a mask has been requested (imgs != None) while a mask was given at masker creation. Given mask will be used. self.data = self.nifti_masker.fit_transform(data) /home/runner/work/dartbrains/dartbrains/.venv/lib/python3.13/site-packages/nltools/data/brain_data.py:253: UserWarning: [NiftiMasker.fit] Generation of a mask has been requested (imgs != None) while a mask was given at masker creation. Given mask will be used. self.data = self.nifti_masker.fit_transform(data) /home/runner/work/dartbrains/dartbrains/.venv/lib/python3.13/site-packages/nltools/data/brain_data.py:253: UserWarning: [NiftiMasker.fit] Generation of a mask has been requested (imgs != None) while a mask was given at masker creation. Given mask will be used. self.data = self.nifti_masker.fit_transform(data) /home/runner/work/dartbrains/dartbrains/.venv/lib/python3.13/site-packages/nltools/data/brain_data.py:253: UserWarning: [NiftiMasker.fit] Generation of a mask has been requested (imgs != None) while a mask was given at masker creation. Given mask will be used. self.data = self.nifti_masker.fit_transform(data) /home/runner/work/dartbrains/dartbrains/.venv/lib/python3.13/site-packages/nltools/data/brain_data.py:718: UserWarning: Data array used to create a new image contains 64-bit ints. This is likely due to creating the array with numpy and passing `int` as the `dtype`. Many tools such as FSL and SPM cannot deal with int64 in Nifti images, so for compatibility the data has been converted to int32. return self.nifti_masker.inverse_transform(self.data)
[2K [2K
/home/runner/work/dartbrains/dartbrains/.venv/lib/python3.13/site-packages/numpy/_core/fromnumeric.py:840: UserWarning: Warning: 'partition' will ignore the 'mask' of the MaskedArray. a.partition(kth, axis=axis, kind=kind, order=order)
We see some significant activations in visual cortex, but we also see strong t-tests in the auditory cortex.
Why do you think this is?
We can also easily run FDR correction by changing the inputs of the threshold_dict. We will be using a q value of 0.05 to control our false discovery rate.
/home/runner/work/dartbrains/dartbrains/.venv/lib/python3.13/site-packages/nltools/data/brain_data.py:718: UserWarning: Data array used to create a new image contains 64-bit ints. This is likely due to creating the array with numpy and passing `int` as the `dtype`. Many tools such as FSL and SPM cannot deal with int64 in Nifti images, so for compatibility the data has been converted to int32. return self.nifti_masker.inverse_transform(self.data)
[2K [2K
/home/runner/work/dartbrains/dartbrains/.venv/lib/python3.13/site-packages/numpy/_core/fromnumeric.py:840: UserWarning: Warning: 'partition' will ignore the 'mask' of the MaskedArray. a.partition(kth, axis=axis, kind=kind, order=order)
You can see that at least for this particular contrast, the FDR threshold appears to be more liberal than p < 0.001 uncorrected.
Let's look at another contrast between vertical and horizontal checkerboards.
con2_name = 'vertical_checkerboard'
con2_file_list = [get_file(sub, 'betas', con2_name) for sub in get_subjects()]
con2_dat = Brain_Data([Brain_Data(f) for f in con2_file_list])
con1_v_con2 = con1_dat - con2_dat
_con1_v_con2_stats = con1_v_con2.ttest(threshold_dict={'unc': 0.001})
_con1_v_con2_stats['thr_t'].iplot()
/home/runner/work/dartbrains/dartbrains/.venv/lib/python3.13/site-packages/nltools/data/brain_data.py:253: UserWarning: [NiftiMasker.fit] Generation of a mask has been requested (imgs != None) while a mask was given at masker creation. Given mask will be used. self.data = self.nifti_masker.fit_transform(data) /home/runner/work/dartbrains/dartbrains/.venv/lib/python3.13/site-packages/nltools/data/brain_data.py:253: UserWarning: [NiftiMasker.fit] Generation of a mask has been requested (imgs != None) while a mask was given at masker creation. Given mask will be used. self.data = self.nifti_masker.fit_transform(data) /home/runner/work/dartbrains/dartbrains/.venv/lib/python3.13/site-packages/nltools/data/brain_data.py:253: UserWarning: [NiftiMasker.fit] Generation of a mask has been requested (imgs != None) while a mask was given at masker creation. Given mask will be used. self.data = self.nifti_masker.fit_transform(data) /home/runner/work/dartbrains/dartbrains/.venv/lib/python3.13/site-packages/nltools/data/brain_data.py:253: UserWarning: [NiftiMasker.fit] Generation of a mask has been requested (imgs != None) while a mask was given at masker creation. Given mask will be used. self.data = self.nifti_masker.fit_transform(data) /home/runner/work/dartbrains/dartbrains/.venv/lib/python3.13/site-packages/nltools/data/brain_data.py:253: UserWarning: [NiftiMasker.fit] Generation of a mask has been requested (imgs != None) while a mask was given at masker creation. Given mask will be used. self.data = self.nifti_masker.fit_transform(data) /home/runner/work/dartbrains/dartbrains/.venv/lib/python3.13/site-packages/nltools/data/brain_data.py:253: UserWarning: [NiftiMasker.fit] Generation of a mask has been requested (imgs != None) while a mask was given at masker creation. Given mask will be used. self.data = self.nifti_masker.fit_transform(data) /home/runner/work/dartbrains/dartbrains/.venv/lib/python3.13/site-packages/nltools/data/brain_data.py:253: UserWarning: [NiftiMasker.fit] Generation of a mask has been requested (imgs != None) while a mask was given at masker creation. Given mask will be used. self.data = self.nifti_masker.fit_transform(data) /home/runner/work/dartbrains/dartbrains/.venv/lib/python3.13/site-packages/nltools/data/brain_data.py:253: UserWarning: [NiftiMasker.fit] Generation of a mask has been requested (imgs != None) while a mask was given at masker creation. Given mask will be used. self.data = self.nifti_masker.fit_transform(data) /home/runner/work/dartbrains/dartbrains/.venv/lib/python3.13/site-packages/nltools/data/brain_data.py:253: UserWarning: [NiftiMasker.fit] Generation of a mask has been requested (imgs != None) while a mask was given at masker creation. Given mask will be used. self.data = self.nifti_masker.fit_transform(data) /home/runner/work/dartbrains/dartbrains/.venv/lib/python3.13/site-packages/nltools/data/brain_data.py:253: UserWarning: [NiftiMasker.fit] Generation of a mask has been requested (imgs != None) while a mask was given at masker creation. Given mask will be used. self.data = self.nifti_masker.fit_transform(data) /home/runner/work/dartbrains/dartbrains/.venv/lib/python3.13/site-packages/nltools/data/brain_data.py:253: UserWarning: [NiftiMasker.fit] Generation of a mask has been requested (imgs != None) while a mask was given at masker creation. Given mask will be used. self.data = self.nifti_masker.fit_transform(data) /home/runner/work/dartbrains/dartbrains/.venv/lib/python3.13/site-packages/nltools/data/brain_data.py:253: UserWarning: [NiftiMasker.fit] Generation of a mask has been requested (imgs != None) while a mask was given at masker creation. Given mask will be used. self.data = self.nifti_masker.fit_transform(data) /home/runner/work/dartbrains/dartbrains/.venv/lib/python3.13/site-packages/nltools/data/brain_data.py:253: UserWarning: [NiftiMasker.fit] Generation of a mask has been requested (imgs != None) while a mask was given at masker creation. Given mask will be used. self.data = self.nifti_masker.fit_transform(data) /home/runner/work/dartbrains/dartbrains/.venv/lib/python3.13/site-packages/nltools/data/brain_data.py:253: UserWarning: [NiftiMasker.fit] Generation of a mask has been requested (imgs != None) while a mask was given at masker creation. Given mask will be used. self.data = self.nifti_masker.fit_transform(data) /home/runner/work/dartbrains/dartbrains/.venv/lib/python3.13/site-packages/nltools/data/brain_data.py:253: UserWarning: [NiftiMasker.fit] Generation of a mask has been requested (imgs != None) while a mask was given at masker creation. Given mask will be used. self.data = self.nifti_masker.fit_transform(data) /home/runner/work/dartbrains/dartbrains/.venv/lib/python3.13/site-packages/nltools/data/brain_data.py:253: UserWarning: [NiftiMasker.fit] Generation of a mask has been requested (imgs != None) while a mask was given at masker creation. Given mask will be used. self.data = self.nifti_masker.fit_transform(data) /home/runner/work/dartbrains/dartbrains/.venv/lib/python3.13/site-packages/nltools/data/brain_data.py:253: UserWarning: [NiftiMasker.fit] Generation of a mask has been requested (imgs != None) while a mask was given at masker creation. Given mask will be used. self.data = self.nifti_masker.fit_transform(data) /home/runner/work/dartbrains/dartbrains/.venv/lib/python3.13/site-packages/nltools/data/brain_data.py:253: UserWarning: [NiftiMasker.fit] Generation of a mask has been requested (imgs != None) while a mask was given at masker creation. Given mask will be used. self.data = self.nifti_masker.fit_transform(data) /home/runner/work/dartbrains/dartbrains/.venv/lib/python3.13/site-packages/nltools/data/brain_data.py:253: UserWarning: [NiftiMasker.fit] Generation of a mask has been requested (imgs != None) while a mask was given at masker creation. Given mask will be used. self.data = self.nifti_masker.fit_transform(data) /home/runner/work/dartbrains/dartbrains/.venv/lib/python3.13/site-packages/nltools/data/brain_data.py:253: UserWarning: [NiftiMasker.fit] Generation of a mask has been requested (imgs != None) while a mask was given at masker creation. Given mask will be used. self.data = self.nifti_masker.fit_transform(data) /home/runner/work/dartbrains/dartbrains/.venv/lib/python3.13/site-packages/nltools/data/brain_data.py:718: UserWarning: Data array used to create a new image contains 64-bit ints. This is likely due to creating the array with numpy and passing `int` as the `dtype`. Many tools such as FSL and SPM cannot deal with int64 in Nifti images, so for compatibility the data has been converted to int32. return self.nifti_masker.inverse_transform(self.data)
[2K [2K
/home/runner/work/dartbrains/dartbrains/.venv/lib/python3.13/site-packages/numpy/_core/fromnumeric.py:840: UserWarning: Warning: 'partition' will ignore the 'mask' of the MaskedArray. a.partition(kth, axis=axis, kind=kind, order=order)
_con1_v_con2_stats = con1_v_con2.ttest(threshold_dict={'fdr': 0.05})
_con1_v_con2_stats['thr_t'].iplot()
[2K [2K
/home/runner/work/dartbrains/dartbrains/.venv/lib/python3.13/site-packages/nltools/data/brain_data.py:718: UserWarning: Data array used to create a new image contains 64-bit ints. This is likely due to creating the array with numpy and passing `int` as the `dtype`. Many tools such as FSL and SPM cannot deal with int64 in Nifti images, so for compatibility the data has been converted to int32. return self.nifti_masker.inverse_transform(self.data) /home/runner/work/dartbrains/dartbrains/.venv/lib/python3.13/site-packages/nltools/plotting.py:135: UserWarning: The given float value must not exceed 0. But, you have given threshold=1e-06. return view_img( /home/runner/work/dartbrains/dartbrains/.venv/lib/python3.13/site-packages/numpy/_core/fromnumeric.py:840: UserWarning: Warning: 'partition' will ignore the 'mask' of the MaskedArray. a.partition(kth, axis=axis, kind=kind, order=order) /home/runner/work/dartbrains/dartbrains/.venv/lib/python3.13/site-packages/nltools/plotting.py:135: UserWarning: Casting data from int32 to float32 return view_img( /home/runner/work/dartbrains/dartbrains/.venv/lib/python3.13/site-packages/nltools/plotting.py:135: UserWarning: Resampling binary images with continuous or linear interpolation. This might lead to unexpected results. You might consider using nearest interpolation instead. return view_img(
Looks like there are some significant differences that survive in early visual cortex and also in other regions of the brain.
This concludes are very quick overview to performing univariate analyses in fMRI data analysis.
We will continue to add more advanced tutorials to the dartbrains.org website. Stay tuned!
Exercises¶
Exercise 1. Bonferroni Correction Simulation¶
Using the Grid Simulation code above, try to find how much larger the signal needs to be using a Bonferroni Correction until we can recover 100% of the true signal, while controlling a family wise error false-positive rate of p < 0.05.
Exercise 2. Which regions are more involved with visual compared to auditory sensory processing?¶
- run a group level t-test and threshold using an uncorrected voxel-wise threshold of p < 0.05, p < 0.005, and p < 0.001.
- plot each of the results
- write each file to your output folder.
Exercise 3. Which regions are more involved in processing numbers compared to words?¶
- run a group level t-test, using a correcte FDR threshold of q < 0.05.
- plot the results
- write the file to your output folder.
